Number of Input Channels:16
Isolation Level:Standard
Signal Compatibility:4 to 20 mA
Voltage Rating:Between input and system: 1500 V AC, for 1 minute
Current Consumption:Up to 230 mA (5 V DC), 540 mA (24 V DC)
External Communication:Pressure clamp terminal, MIL connector cable, Dedicated cable
Weight:0.4 kg

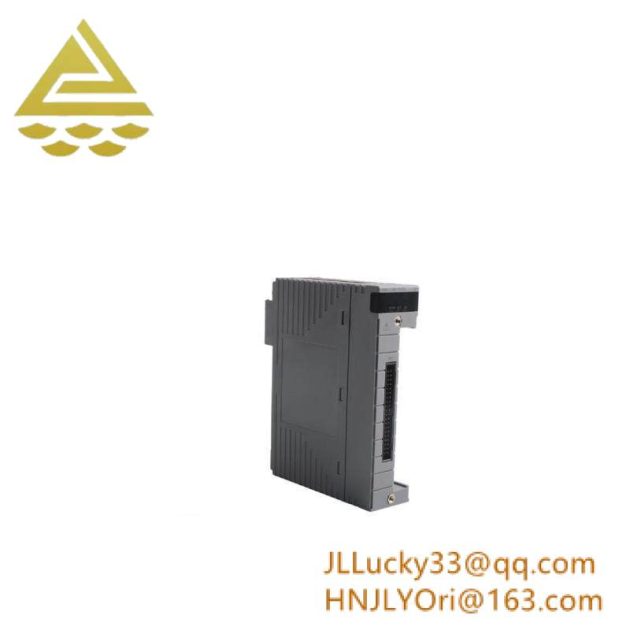

The Yokogawa AAI543-S03 S1 Analog Input Module is designed for high-precision data acquisition, making it an indispensable component in any industrial automation system. Its robust 16-channel design ensures reliable performance under demanding conditions.
Each channel offers a wide input range of 4 to 20 mA, compatible with various industrial sensors and transmitters. This versatility allows seamless integration into diverse applications across manufacturing, chemical processing, and more.
The module features high isolation voltage of 1500 V AC, ensuring safe operation and preventing electrical interference between different parts of the system. This isolation enhances system reliability and extends maintenance intervals.
The AAI543-S03 S1 is optimized for efficient power usage. It consumes up to 230 mA at 5 V DC or 540 mA at 24 V DC, minimizing energy consumption without compromising on performance.
For ease of installation and maintenance, the module supports a variety of mounting configurations including pressure clamp terminals, MIL connectors, and dedicated cables. The modular design facilitates quick setup and easy replacement when necessary.
