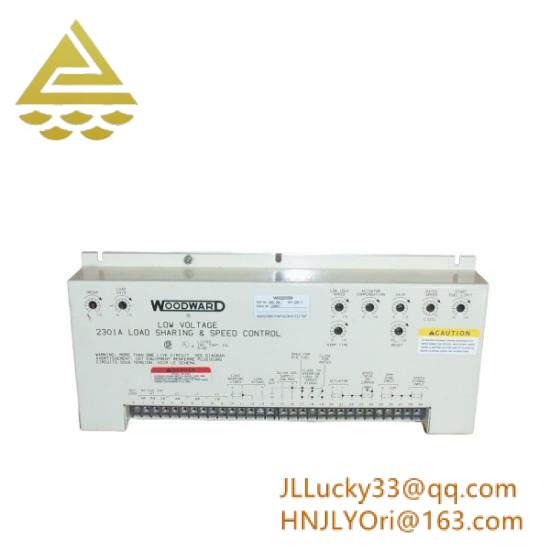

Woodward 9905-068 | 2301A Controller Module

Model Number:9905-068

Series:2301A

Functionality:Load Sharing and Speed Control

Operating Voltage Range:24 Vdc

Input Voltage:18–32 Vdc

Power Consumption:7.25 W

Keypad Display:12 Keys and 32 Character LCD

Manual Compatibility:85195

NEMA Rating:4/IP54

Operating Temperature:-25 to +60 °C

Weight:Less than 20 lbs

    The Woodward 9905-068 2301A Controller Module is designed with precision engineering and advanced technology to meet the stringent requirements of modern industrial control applications. It offers unmatched reliability and robustness, making it an ideal choice for critical systems in power generation, oil & gas, and manufacturing sectors.

    With its high-voltage compatibility and wide input voltage range, this controller module ensures efficient operation under diverse electrical environments. Its reverse acting feature allows for precise speed control, enabling smooth and stable system performance.

    Crafted from high-grade aluminum alloy, the module is lightweight yet sturdy, providing durability and resistance against harsh industrial conditions. The compact design facilitates easy installation and integration within existing control panels.

    Featuring IP54 NEMA rating, the 9905-068 module is protected against dust ingress and light water splashes, ensuring operational safety in a variety of environmental settings. Its operating temperature range (-20°C to +50°C) makes it suitable for deployment in extreme climates.

    Equipped with two single-pole double-throw (SPDT) relay contacts, the controller module provides reliable switching capabilities for critical control functions. Additionally, it supports seamless software integration with Windows operating systems, enhancing system management and monitoring capabilities.
