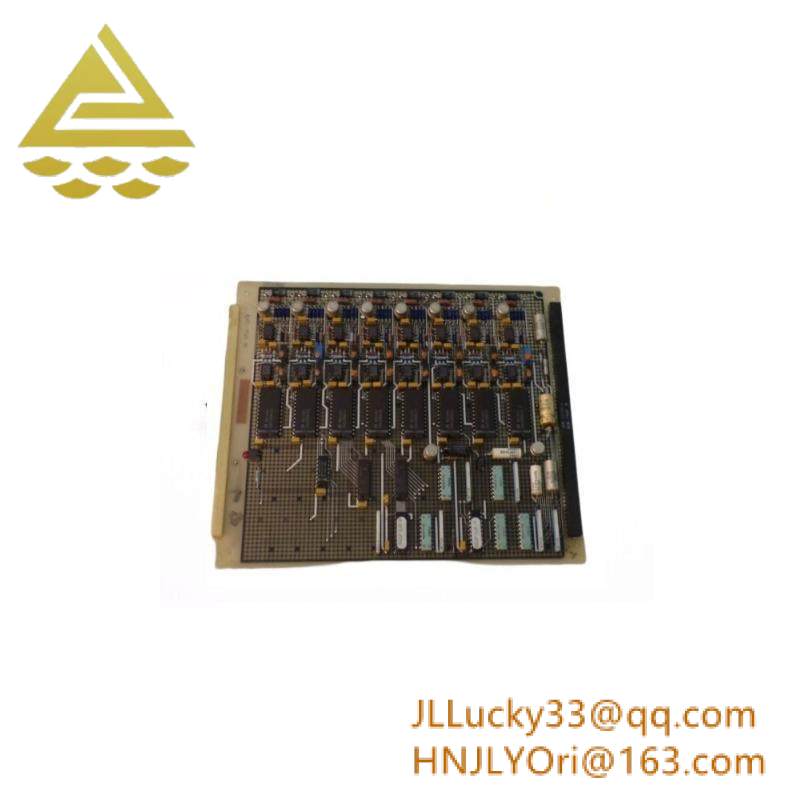

WOODWARD 5461-644 Analog Output Module

Operating Voltage:120VAC/DC

Current Range:0-10mA/0-20mA

Signal Type:4-20mA or 0-10V

Output Power:Up to 25W

Operating Temperature:-40°C to +85°C

Input Resistance:250 Ohms

Load Capability:200 Ohms

Enclosure Rating:IP65

Connection:M12 Connector

    The WOODWARD 5461-644 Analog Output Module boasts exceptional accuracy and reliability, making it a preferred choice for critical industrial control applications. This module is designed to provide smooth analog signal output, essential for precise control in various industrial processes.

    Equipped with a wide operating voltage range of 24 VDC, this module ensures compatibility across different industrial systems. Its adjustable current output from 0 to 20 mA enables flexible control scenarios, ensuring responsiveness and efficiency.

    Featuring an impressive resolution of 0.01 mA, the module ensures fine-grained control over output signals, crucial for applications demanding high precision. The extended temperature range of -40°C to +85°C guarantees reliable operation under diverse environmental conditions.

    With support for MODBUS RTU communication protocol, the module seamlessly integrates with existing industrial automation systems, enhancing system interoperability. Its low power consumption of max. 1 W contributes to energy efficiency, reducing operational costs.

    The IP65 enclosure type offers robust protection against dust and water ingress, ensuring the module’s durability in harsh industrial environments. Compact dimensions of 120mm x 50mm x 20mm and a lightweight design of 0.15 kg facilitate easy installation and maintenance.
