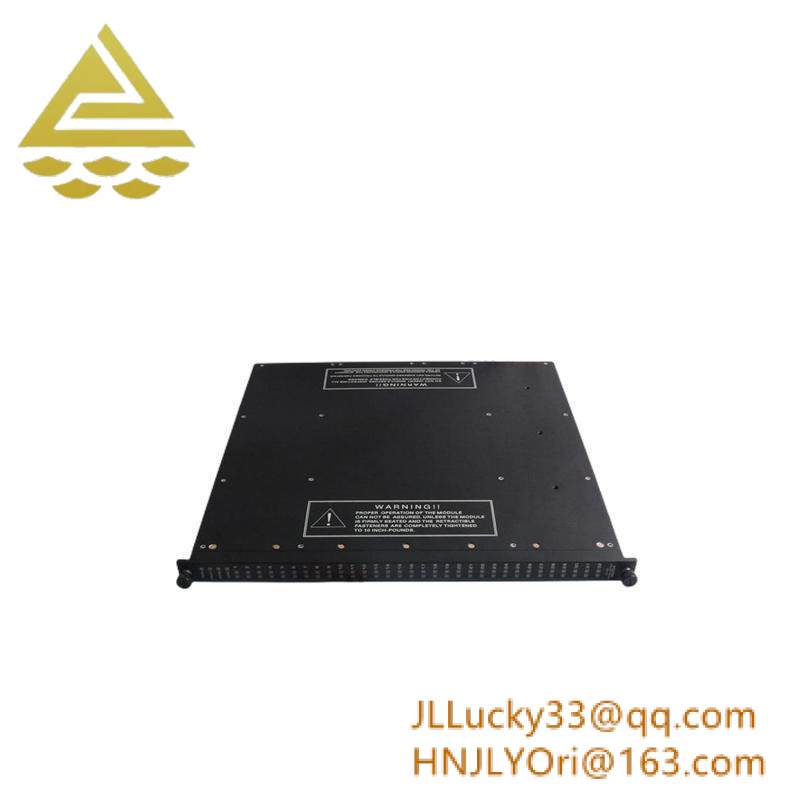

TRICONEX DO3401 Output Module: Reliable & High-Speed Digital Input Solution

Model Type:Digital Input Module

Manufacturer:TRICONEX

Points:16, commoned

Nominal Output Voltage:24 VDC

Specified Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Output Current (Switching):<4.8 A, self-limiting | 3.0 A, typical

Output Current (Degraded mode):> 0.7 A, self-limiting | 1.5 A, typical

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region | 6–14 VDC = transition region | 15–30 VDC = On region

Leakage to Load (Off):Minimal

Series:DO3401

Material Coding:DO3401

    Designed for seamless integration into complex industrial control systems, the TRICONEX DO3401 Output Module ensures reliable operation under various environmental conditions.

    Each of the 16 commoned points offers robust switching capabilities, making it suitable for applications requiring high-speed signal processing.

    The module’s ability to handle a wide range of operating voltages ensures compatibility with diverse power supplies found in industrial settings.

    Equipped with advanced field alarm mechanisms, this module guarantees real-time detection of critical issues, enhancing system reliability and safety.

    Its efficient output current management ensures minimal power consumption while maintaining high performance standards.

    Crafted from high-quality materials, the TRICONEX DO3401 Output Module boasts durability and long service life, ideal for continuous operation in harsh environments.
