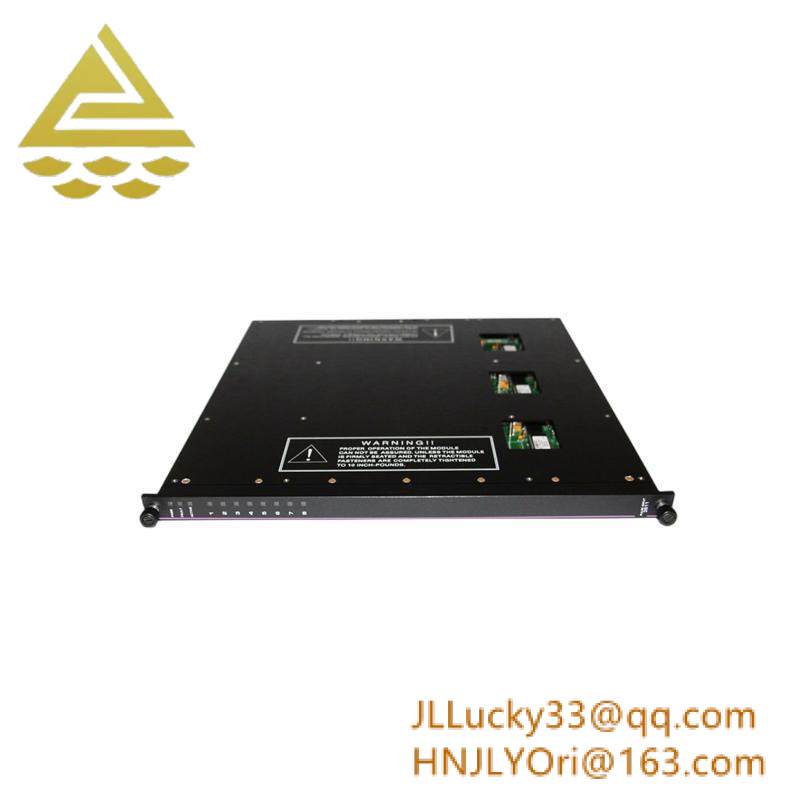

Triconex 3511 Pulse Module, Precision Input Technology for Industrial Automation

Model Type:TMR, PI

Input Signals:8, non-commoned

Resolution:16 bits

Accuracy:1,000 Hz to 20,000 Hz, ± 0.01%

Input Characteristics:(AC coupled, balanced differential)

Update Rate:25 ms, typical

Impedance (load):≥ 8 kW, 20 kW typical

Common Mode Range:-100 VDC to +100 VDC peak-to-peak

Normal Mode Range:1.5 V to 200 V peak-to-peak

Overrange Protection:±150 VDC, continuous

Hysteresis:150 millivolts, typical

Wave Shape:Sine, square, pulse, etc.

    Engineered for high reliability and accuracy, the Triconex 3511 Pulse Module is essential for applications requiring precise signal interpretation in industrial environments.

    This module supports a variety of wave shapes including sine, square, and pulse, ensuring compatibility with diverse automation needs.

    Featuring a robust AC coupling and balanced differential input, it ensures minimal interference and noise, delivering consistent performance under various operational conditions.

    With an update rate of 25 milliseconds, this module offers real-time monitoring and control, enhancing the responsiveness of industrial systems.

    The wide range of input signals and common mode protection mechanisms make it suitable for a broad spectrum of applications, from process control to safety-critical systems.

    Manufactured using high-quality materials, the Triconex 3511 Pulse Module is designed for longevity and resistance to harsh industrial environments, guaranteeing dependable operation over extended periods.
