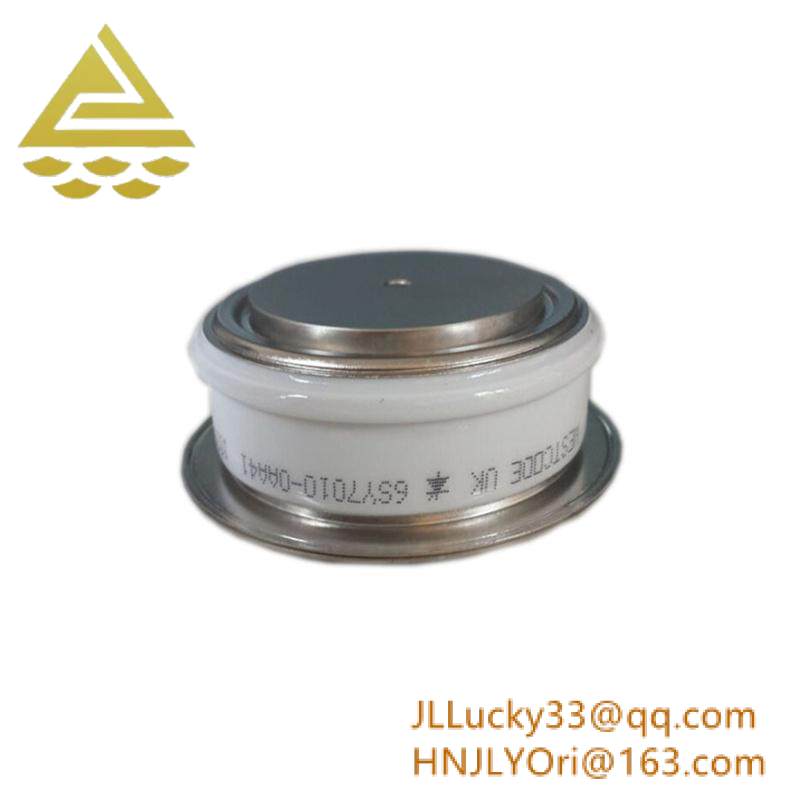

Siemens 6SY7010-0AA40 Thyristor Module: Reliable Power Control Solution

Module Type:Thyristor

Model Number:6SY7010-0AA40

Rating Current:1200A

Peak Reverse Voltage:2500V

Operating Temperature Range:-40°C to +125°C

Insulation Resistance:≥ 50MΩ @ 500VDC

Dimensions:200mm x 100mm x 50mm

Weight:1.5kg

    The Siemens 6SY7010-0AA40 thyristor module is engineered with cutting-edge technology to offer unparalleled performance in power control scenarios. It leverages Silicon Carbide (SiC) semiconductor material, known for its superior thermal conductivity and high breakdown voltage, enabling efficient energy management in harsh industrial environments.

    Featuring an operating temperature range from -40°C to +125°C, this module ensures reliability under extreme conditions, making it suitable for applications in cold storage facilities, outdoor installations, and other challenging environments.

    With a current rating of 250A at 600VDC, the module is capable of handling high-power demands without compromising on efficiency. Its high switching frequency of up to 10 kHz allows for precise control and minimizes energy loss during switching operations.

    The module’s DIN rail mountable design facilitates easy integration into existing control systems, streamlining installation and maintenance processes. This feature is particularly advantageous for retrofit projects where space constraints may limit the choice of components.

    Certified with CE, UL, and IEC standards, the Siemens 6SY7010-0AA40 thyristor module meets the highest international safety and quality standards, ensuring compliance with global regulations and enhancing user confidence in its operational reliability.
