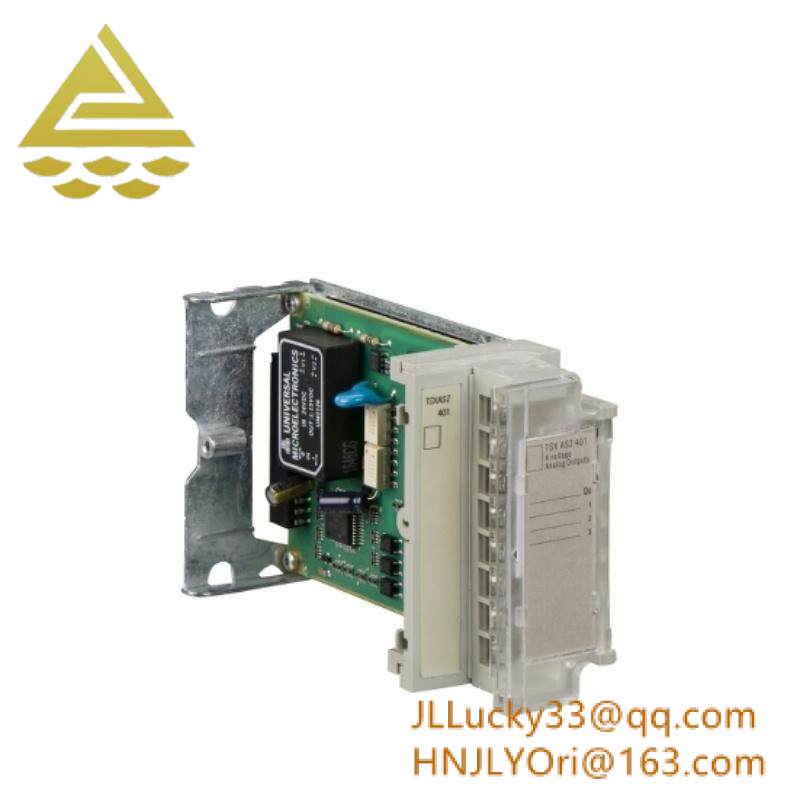

Schneider TSXASZ401: 4-Channel Analog Output Module, Designed for Precision Control

Product Type:Module

Product ID:TSXASZ401

Automation Platform:Modicon TSX Micro

Component Type:Analog Output Module

Number of Channels:4

Output Type:0…10 V, ±10 V

Current Consumption:90 mA

Product Weight:0.44 lb (US) (0.2 kg)

Ambient Temperature:+50°C

Overall Dimensions:Width: 239mm, Length: 90mm, Depth: 194mm

Control Panel:Yes

Drive Type:Variable Speed

Field Bus Communication:FC Protocol, Modbus RTU

Filter:Included

Function:Motor Control

Special Features:Excellent Reliability, Integrated Braking Chopper, User-Friendly

Standards Met:ISO 14001, RoHS, WEEE

IP Rating:IP20

Mounting Type:Panel Mount

    The Schneider TSXASZ401 is an advanced analog output module tailored for demanding industrial control environments. Its compact design and robust performance make it an ideal choice for applications requiring precise voltage control.

    Featuring four independent 0…10 V and ±10 V output channels, this module ensures accurate control over motors, actuators, and other devices that require analog signals. Its low current consumption ensures efficient operation, minimizing energy loss.

    Engineered with high reliability and user-friendly features, the TSXASZ401 is built to withstand harsh industrial conditions. The integrated braking chopper reduces the risk of overshoots and enhances system stability during stop transitions.

    This module supports multiple communication protocols, including Field Control (FC) and Modbus RTU, facilitating seamless integration with a wide range of industrial automation systems. It’s compatible with various field buses, enhancing its flexibility and scalability.

    Designed for ease of use, the Schneider TSXASZ401 is equipped with a comprehensive control panel that provides quick access to setup and monitoring functions. Its compact size and IP20 rating ensure durability and protection against dust and minor water splashes.

    Certified to international environmental standards like ISO 14001 and compliant with RoHS and WEEE regulations, the Schneider TSXASZ401 adheres to the highest environmental and safety standards. Its panel mount design allows for convenient installation in control cabinets.
