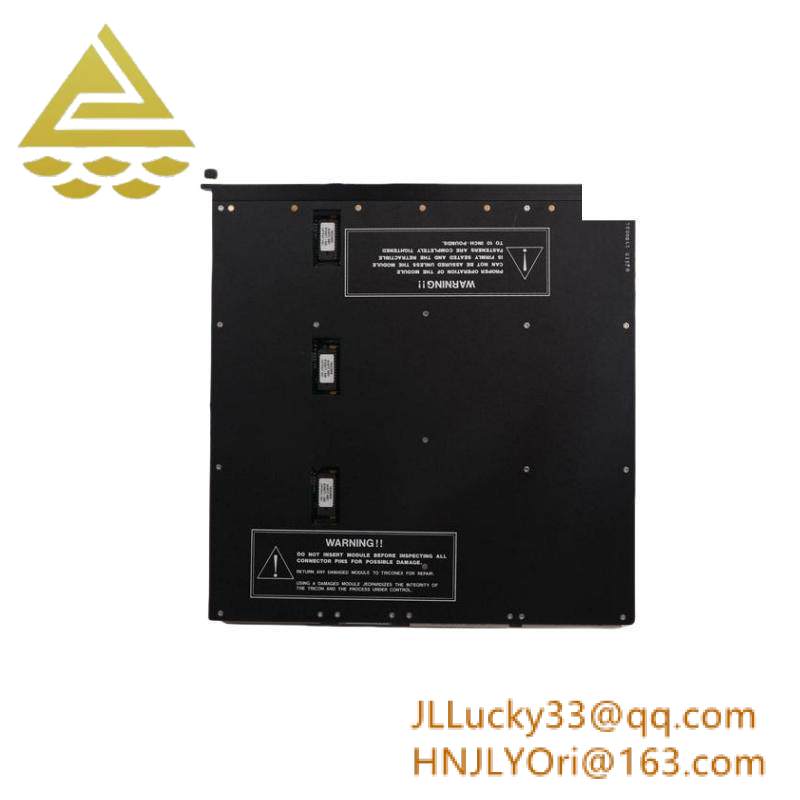

Invensys Triconex 3511 Pulse Input (PI) Module – Advanced Control Solutions for Industrial Automation

Manufacturer:Invensys Triconex

Model Number:3511

Type:TMR, PI

Input Signals:8, non-commoned

Resolution:16 bits

Accuracy:1,000 Hz to 20,000 Hz, ± 0.01%

Input Characteristics:(AC coupled, balanced differential)

Update Rate:25 ms, typical

Impedance (Load):> 8 KW, 20 KW typical

Common Mode Range:-100 VDC to +100 VDC peak-to-peak

Normal Mode Range:1.5 V to 200 V peak-to-peak

Overrange Protection:±150 VDC, continuous

Hysteresis:150 millivolts, typical

Wave Shape:Sine, square, pulse, etc.

    Experience unparalleled precision in industrial automation with the Invensys Triconex 3511 Pulse Input Module. This state-of-the-art module is engineered to deliver consistent performance in even the most demanding environments.

    Featuring an advanced design that supports up to eight non-commoned input signals, it ensures accurate data collection for real-time process monitoring. The 16-bit resolution and exceptional accuracy across its wide operating range make it ideal for applications requiring high fidelity.

    With a rapid update rate of 25 ms and robust input characteristics, this module ensures swift and precise response to operational changes. Its high load impedance and broad common mode range enable compatibility with a wide variety of input sources, enhancing its versatility.

    Equipped with overrange protection and low hysteresis, the Invensys Triconex 3511 Pulse Input Module safeguards against electrical surges while maintaining minimal delay between signal reception and output response. Its adaptable wave shape selection caters to diverse process requirements.

    Crafted from high-quality materials, this module withstands harsh industrial conditions without compromising reliability or performance. It’s designed for seamless integration into existing systems, ensuring a smooth transition and enhanced operational efficiency.

    Backed by comprehensive support and global availability, the Invensys Triconex 3511 Pulse Input Module is the trusted choice for professionals seeking superior control and precision in their automation projects.
