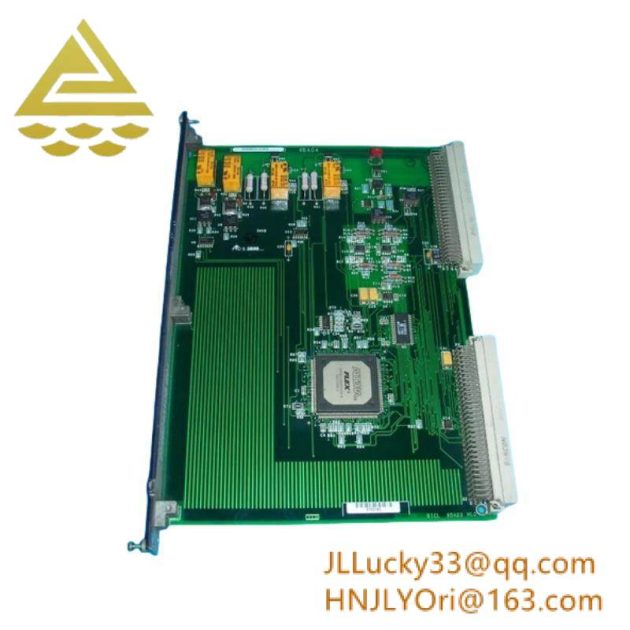

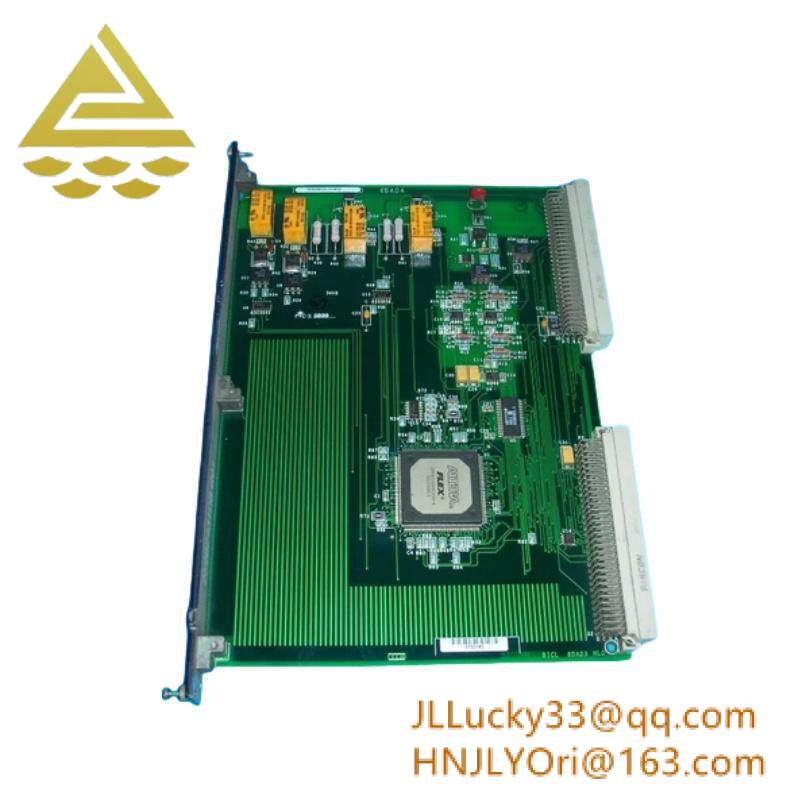

GE Speedtronic IS200BICLH1AFD IGBT Drive Bridge Interface Board

Manufacturer:General Electric

Series:Innovation Series

Part Number:IS200BICLH1AFD

Functional Acronym:BICL

Functional Description:IGBT Drive/Source Bridge Interface Board

PCB Coating:Conformal Coating

Functional Revision:Revision A, Revision F

Artwork Revision😀

Technical Specifications:{“Dimensions”:”W11 x H6 x D6.7 cm”,”Weight”:”0.14 kg”}

    The IS200BICLH1AFD, a pivotal component of the GE Speedtronic Mark VI system, serves as an essential bridge for IGBT drives and sources. This PCB board is meticulously engineered to ensure seamless integration and optimal performance within industrial control environments.

    Featuring a conformal coating for enhanced environmental resistance and a detailed instruction manual (GEI-100264), this board is designed to withstand rigorous industrial conditions. It supports multiple functional revisions, offering flexibility for various operational needs.

    Crafted with precision, the IS200BICLH1AFD is compatible with a wide range of industrial systems, facilitating efficient turbine management and enhancing overall system reliability. Its robust design ensures long-lasting performance and minimal downtime.

    For applications requiring high accuracy and reliability in managing industrial processes, the IS200BICLH1AFD provides a critical link between hardware components and control logic, ensuring smooth operation and maximizing productivity.

    To achieve peak performance, it’s recommended to consult the detailed instruction manual for proper installation, configuration, and maintenance procedures. This ensures the board operates within specified parameters and maintains optimal efficiency throughout its lifecycle.
