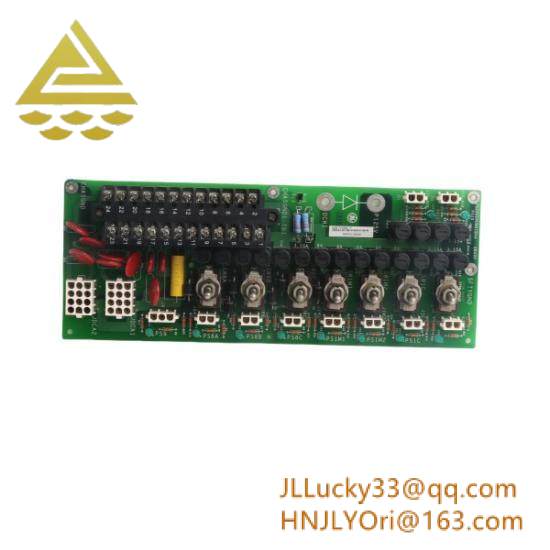

GE IS200EPDMG1BAA – Mark VI Gas/Turbine Control System Board

Board Type:Circuit Board

Manufacturing Brand:General Electric

Series:Mark VI

Model Number:IS200EPDMG1BAA

Control System Compatibility:Gas/Steam Turbine

Ethernet Capabilities:Yes

Control Mode:Simplex or TMR (Triple Modular Redundant)

Terminal Blocks:2, located in the bottom corner

Power Supply:Rectangular

Weight:Less than 2 lbs before packaging

Dimensions:W4 x L6.5 inches (board), W2.25 x H4 inches (faceplate)

    Crafted specifically for GE’s renowned Speedtronic series, the IS200EPDMG1BAA is a rectangular board component designed for seamless integration into the Mark VI gas and steam turbine control systems. This board boasts cutting-edge Ethernet functionality, ensuring high-speed data transfer and enhanced system communication.

    Offering the flexibility to configure either simplex or TMR control options, the IS200EPDMG1BAA caters to the varying needs of different turbine systems, enhancing operational reliability through redundancy and fail-safe mechanisms.

    Equipped with two terminal blocks positioned at the bottom corner of the board, it facilitates easy connection to various system components, streamlining the installation process.

    The board’s design incorporates a large, square-shaped transformer centrally positioned, providing robust power management for the control system. Adjacent to the transformer lies a small electronic component labeled DS1, adding to the board’s comprehensive functionality.

    Printed at the top border of the PCB, the full part number IS200EPDMG1BAA ensures clear identification, enabling straightforward procurement and maintenance processes. This product is meticulously designed for durability, efficiency, and compatibility, making it an indispensable upgrade for your Mark VI turbine control system.
