Dimension:Small rectangular design
Board Configuration:Factory drilled corners, body and edges
Auxiliary Card:Mounted in the center, with FPGA and ICs, connectors, capacitors, resistors, diodes, and transistors
Code Markings:DCOM, FA/00
Barcodes:Two attached to the surface
Type Designation:PLC

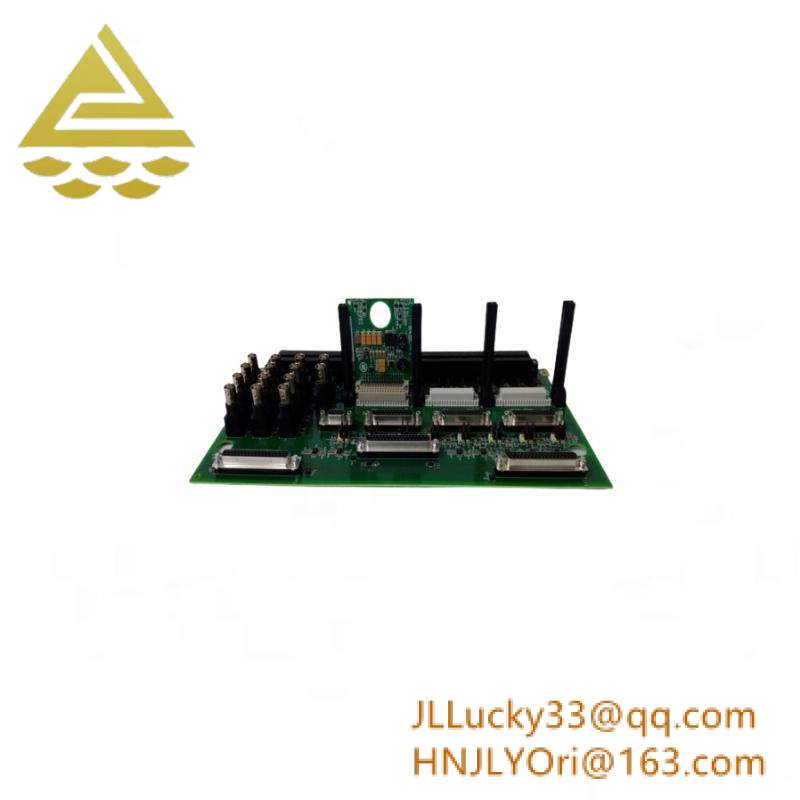

Crafted with precision for seamless integration into the Speedtronic Mark VI system, the GE IS200AEPCH1ABC Control Board is designed for optimal performance in industrial steam and gas turbine operations.
This small, rectangular card without a faceplate features multiple connection points, ensuring efficient data transmission and control signals for the complex systems it manages.
The inclusion of an auxiliary card, which is almost centered on the main board, provides additional functionality and flexibility in managing various operational parameters.
Each connection point and marking, such as DCOM and FA/00, serves specific purposes in the board’s configuration and troubleshooting, enhancing its reliability and ease of maintenance.
Despite its compact size, the IS200AEPCH1ABC Control Board packs a punch with its intricate circuitry and robust connectivity options, making it a reliable choice for industrial environments where precision and reliability are paramount.
