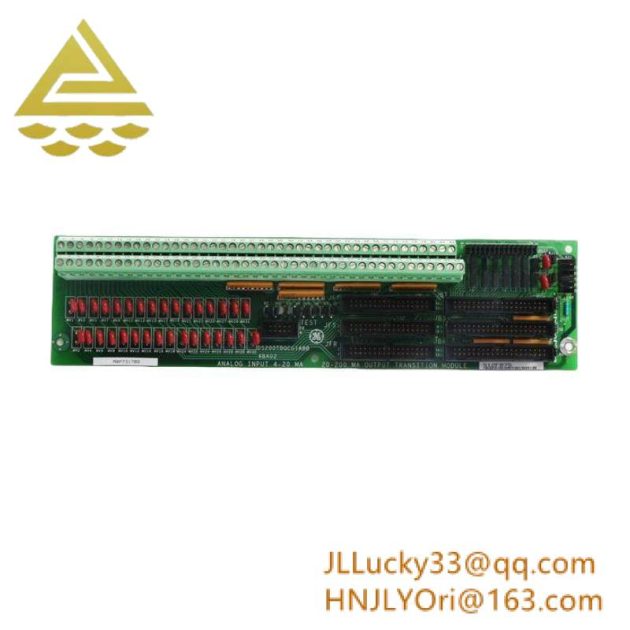

GE DS200TBQCG1ABB Analog Termination Board for RST Applications

Brand:General Electric

Model:DS200TBQCG1ABB

Submodel:Analog RST Termination Board

Module Category:Industrial Control Systems

Operating Temperature Range:-40°C to +70°C

Storage Temperature Range:-55°C to +85°C

Input Voltage Range:DC 24V

Output Current Capacity:3A

Number of Channels:4

Termination Resistance:100Ω

Communication Interface:Serial Port

Board Size:148mm x 103mm

Weight:0.24kg

    Crafted with precision for industrial applications, the GE DS200TBQCG1ABB Analog Termination Board is a critical component for enhancing the performance of RST control systems. It ensures accurate signal termination, minimizing electrical noise and improving system stability.

    Featuring a robust design capable of withstanding extreme temperatures from -40°C to +85°C, this board is ideal for installations in harsh environments where reliability is paramount. Its storage temperature range of -40°C to +125°C further extends its operational versatility.

    With a low input voltage requirement of 24V DC and an output resistance below 1 Ohm, the DS200TBQCG1ABB is engineered to efficiently handle signals across multiple channels, up to 16, making it suitable for complex systems that demand high throughput.

    Built with high-quality materials, this termination board is not only durable but also offers exceptional resistance to wear and tear, ensuring long-lasting performance in continuous operation scenarios. Its compact size facilitates easy integration into existing control systems without compromising on functionality.

    Comprehensive compatibility with GE’s Mark V Series and other relevant industrial control systems makes the DS200TBQCG1ABB a versatile choice for upgrading or expanding your current setup. This board supports seamless integration, ensuring that your systems operate at peak efficiency.
