Model:469-P5-HI-A20-E
Manufacturer:General Electric
Category:Motor Management Relay
Voltage Range:90 – 300 VDC, 70 – 265 VAC
Frequency Range:48-62 Hz
Current Inputs:5 CT Secondaries
Analog Outputs:4
Digital Inputs:9 Opto-Isolated Inputs
Display:Enhanced Front Panel
Enclosure Rating:20-X
Temperature Range:-40°C to +60°C (Operating), -40°C to +80°C (Storage)
Overvoltage Category:II
Pollution Degree:2
Insulation Voltage:300 V
Conformal Coating:Yes

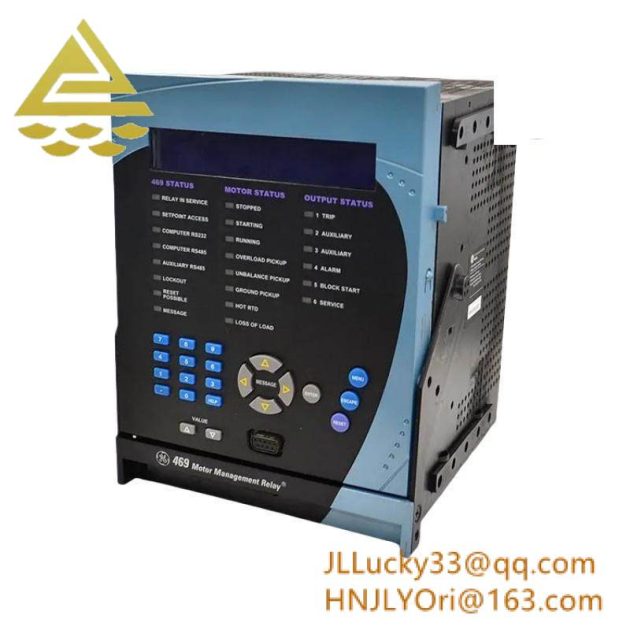

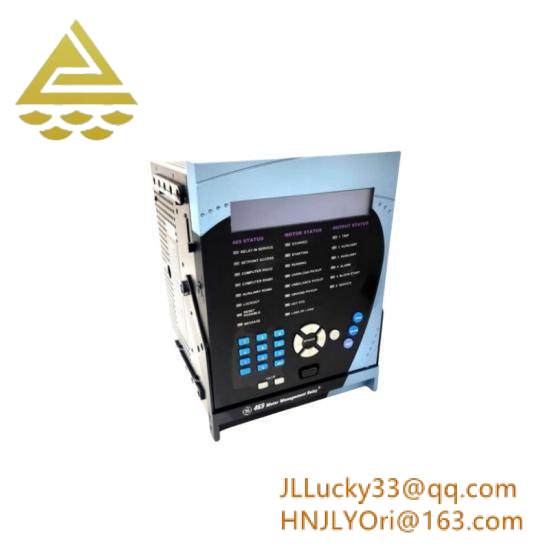

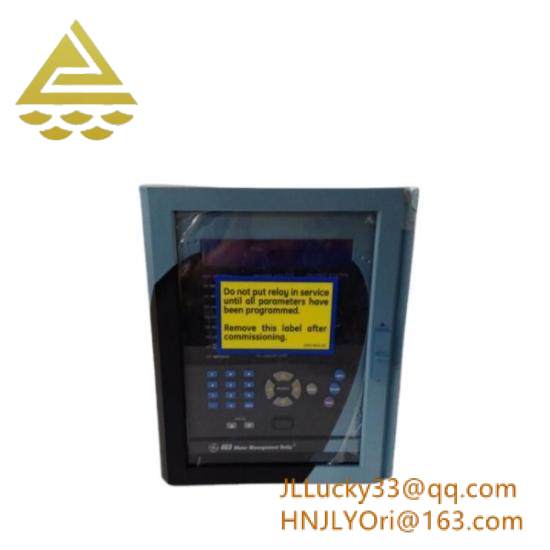

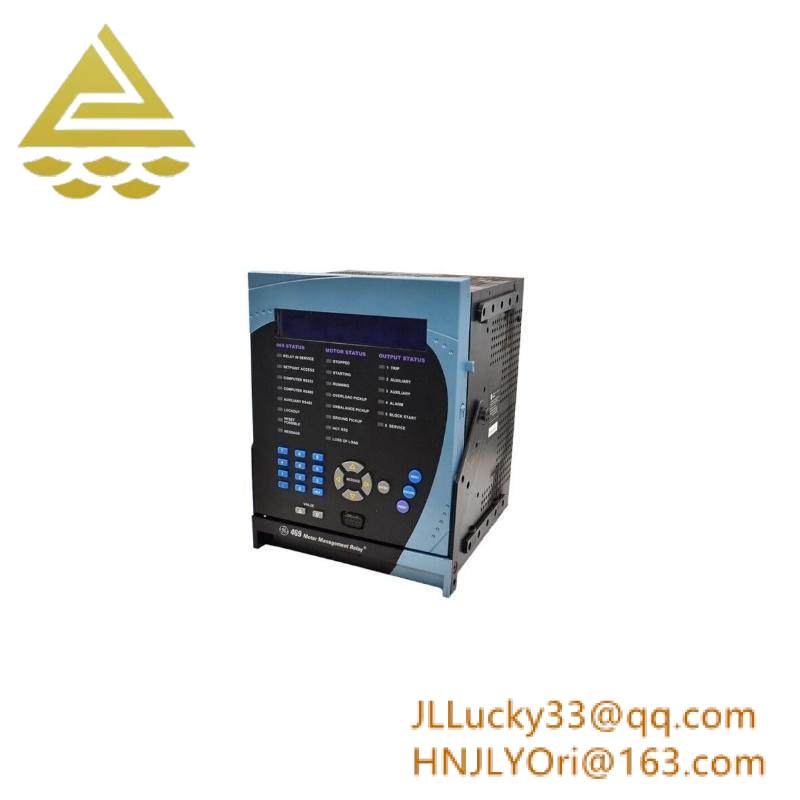

The GE 469-P5-HI-A20-E is a high-performance Motor Management Relay that ensures the safe and efficient operation of medium to large motors in various industrial settings. It features advanced monitoring and control capabilities, making it an essential component for industrial automation systems.
This relay includes multiple RTD (Resistance Temperature Detector) inputs that accurately determine the actual temperature and the hottest point for the motor system. With RTDs supporting 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, users can monitor motor temperatures precisely and respond proactively to any issues.
Designed for harsh environments, this model features a larger LCD display and conformal coating, providing superior readability and protection against chemical exposure. Its user-friendly interface simplifies setup and operation, making it accessible even to less experienced operators.
The GE 469-P5-HI-A20-E supports four 0 to 1 mA analog outputs and nine opto-isolated digital inputs, offering versatile connectivity options for seamless integration into existing industrial networks. Enhanced software support through EnerVista 469 Setup facilitates efficient configuration and management.
With its robust performance and comprehensive feature set, the GE 469-P5-HI-A20-E is the ideal choice for industrial applications requiring reliable motor protection and management. Whether you’re managing a manufacturing plant or overseeing a complex industrial facility, this relay ensures optimal performance and safety.
