Control Power nominal:20 VA
Control Power maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:Approximately 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:Class I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:Approximately 4.5 kg
Optional Features:Metering Package
Communication Interfaces:Non-isolated RS232 port, RS485 port
Event Record Triggers:Power fail, Alarms, Self-test, Inhibit, Trip, Waveform Capture
Operating Range:-40°C (-40°F) to +60°C (140°F)
Storage Range:-40°C (-40°F) to +80°C (176°F)

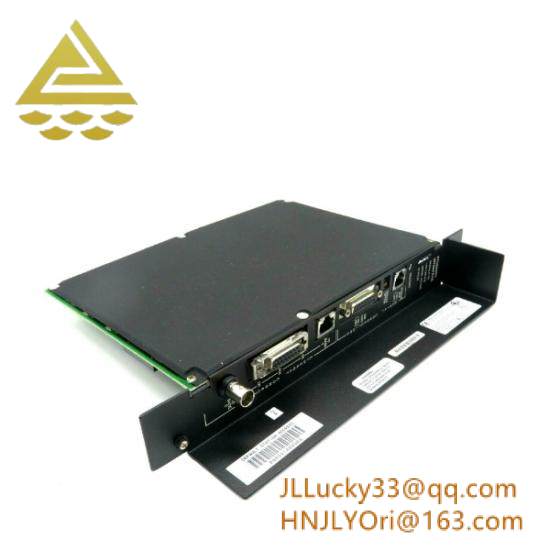

The GE Multilin 369-HI-0-M-0-0 is a state-of-the-art motor management relay engineered for robust performance in industrial settings. This device provides comprehensive protection and monitoring for medium-sized motors, ensuring reliable operation even under challenging conditions.
With true RMS current conversion, this relay delivers accurate and consistent measurements of motor performance. The optional metering package further enhances the device’s functionality by offering detailed insights into motor health and operational efficiency.
Designed with flexibility in mind, the 369-HI-0-M-0-0 supports non-isolated RS232 and RS485 communication ports, enabling seamless integration with existing control systems. Its wide input range and robust insulation class make it suitable for diverse industrial environments.
Built with durability in mind, this relay operates efficiently within a broad temperature range, from -40°C to +60°C during operation and up to +80°C during storage. Its compact dimensions and lightweight design (approximately 4.5 kg) ensure easy installation and minimal space requirements.
By incorporating advanced features such as event record triggers and waveform capture, the GE Multilin 369-HI-0-M-0-0 offers unparalleled visibility into motor performance, allowing for proactive maintenance and optimization.
