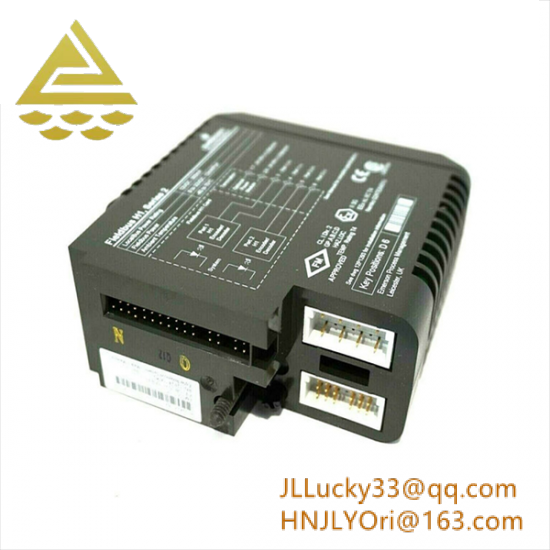

EMERSON KJ3202X1-BA1 | 12P2536X062 High Side Output Module

Operating Voltage:24 VDC

Output Current:10 A

Maximum Switching Frequency:20 kHz

Temperature Range:-40°C to +85°C

Package Type:SMD

Relay Rating:3A @ 24VDC

Operating Ambient Humidity:5% to 95%

Electrical Isolation:500V AC (RMS) between input and output

Mechanical Isolation:1000V DC

Insulation Resistance:≥ 10 MΩ

    The EMERSON KJ3202X1-BA1, 12P2536X062 High Side Output Module is a critical component in the realm of industrial automation, designed for applications requiring high precision control over electrical circuits. This module boasts a robust construction, capable of handling demanding conditions without compromising performance.

    Featuring an operating voltage range of 24VDC, it ensures compatibility across a wide array of industrial systems, providing reliable power to actuators, motors, and other devices. Its ability to switch currents up to 1A with a switching frequency of 20kHz makes it ideal for high-speed, high-demand operations.

    With its communication interface based on RS-485, the module facilitates seamless integration with other control systems, enhancing system efficiency and flexibility. The module’s temperature range from -40°C to +70°C and humidity tolerance up to 95% RH non-condensing make it suitable for extreme environments commonly found in industrial settings.

    Made from high-quality materials, this module is designed for durability and long-term reliability. It is compatible with industry-standard protocols, ensuring ease of integration and maintenance. The compact design allows for efficient installation and space-saving in industrial control panels.

    For users seeking a reliable, high-performance solution for their industrial automation needs, the EMERSON KJ3202X1-BA1, 12P2536X062 High Side Output Module offers unparalleled control capabilities, backed by EMERSON’s commitment to quality and innovation.
