Product Type:Axis Controller Module
Counter Resolution:24 bit
Inputs:HEDL (HP / AVAGO interface) / RS422
Encoder Power Supply:+5 V or +15 V selectable with jumper
Output Voltage:Low: 0 to 2 V, high: 3 to 34 V, Imax = 10 mA
Voltage Range:18 to 34 VDC
Stepper Motor Compatibility:Stepper motor module
Frequency Response:2x Out 150kHz; 2x In INC; 1MHz; RS422
DI Connections:8x DI 24V
Acceleration Modes:Linear/sine²/parable
Power Amplifier Status:Without power amplifier
Encoder Supply Voltage:5/15V

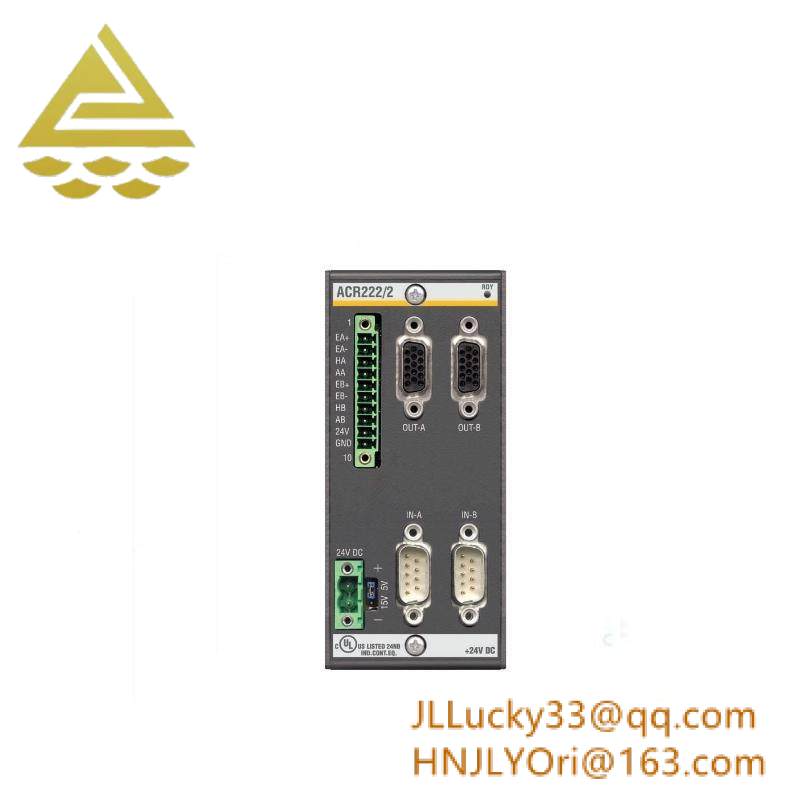

The Bachmann ACR222/2 Axis Controller Module is a cutting-edge solution for precision motion control in industrial automation environments. It boasts a high-resolution counter, ensuring accurate tracking and positioning for demanding applications. The module supports versatile encoder interfaces, including HEDL and RS422, enhancing its flexibility and integration capabilities.
Designed with robust electronics, the ACR222/2 is capable of handling a wide range of voltage inputs and outputs, from 18 to 34 VDC, ensuring compatibility with various power sources. Its configurable encoder power supply allows users to choose between +5 V or +15 V based on their specific requirements.
This axis controller is equipped with dual stepper motor outputs operating at 150 kHz, coupled with incremental encoder inputs at 1 MHz. The inclusion of eight digital inputs (DI) at 24V provides ample connectivity for interfacing with additional sensors and control systems. Acceleration modes such as linear, sine squared, and parabolic further enhance the module’s versatility, catering to a broad spectrum of motion profiles.
The Bachmann ACR222/2 features an intuitive design with a jumper selection for encoder power supply, making setup straightforward and adaptable. Its compact size and modular design facilitate easy installation within existing machinery or equipment. This module is the ideal choice for manufacturers seeking to upgrade or expand their industrial control systems with reliable and efficient motion control capabilities.
Backed by Bachmann’s commitment to quality and innovation, the ACR222/2 Axis Controller Module is designed for longevity and performance. It undergoes rigorous testing to ensure reliability in harsh industrial environments. With its combination of high precision, flexibility, and ease of use, this module is poised to deliver exceptional results in a variety of industrial settings.
