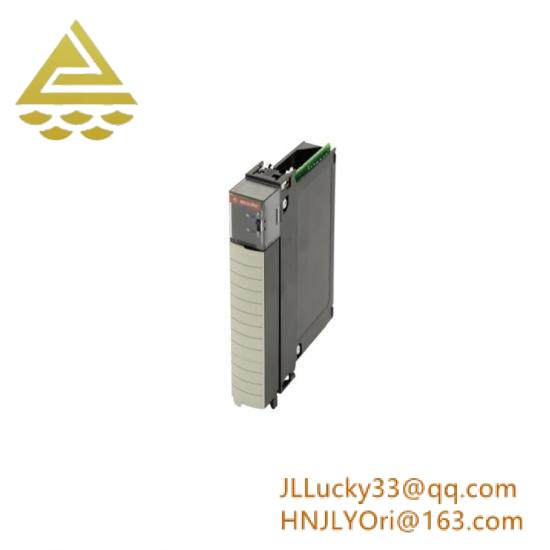

Allen-Bradley 1756-IF8 ControlLogix Analog Input Module – Industrial Automation Innovation

Model Type:ControlLogix

Model Number:1756-IF8H

Manufacturer:Allen-Bradley

Weight:1.00 lbs

I/O Module Type:Analog Hart Interface

Input Channels:8

Differential Voltage or Current:Yes

Data Formats:Choice of three

Input Ranges:Multiple current and voltage

Module Filter:Yes

Real-time Sampling:Yes

Alarm Features:Under range and over range, process, rate, wire-off detection

Communication:Highway addressable remote transducer (HART)

Sampling Frequency:Not specified

Power Supply:Not specified

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not specified

    The Allen-Bradley 1756-IF8 ControlLogix Analog I/O Module is an essential component for achieving high-precision control in industrial processes. Designed for seamless integration into advanced automation systems, it provides exceptional accuracy and reliability.

    Featuring eight channels for either differential voltage or current inputs, this module ensures precise data acquisition from sensors, making it ideal for applications requiring sensitive monitoring and control. The inclusion of HART communication protocol facilitates easy setup and configuration, allowing for smooth integration with existing systems.

    With support for multiple current and voltage input ranges, the 1756-IF8 can adapt to various industrial environments, enhancing its versatility across different applications. Its real-time sampling feature ensures that data is captured accurately and promptly, optimizing operational efficiency.

    Equipped with point-level output fault states, the module offers immediate alerts for potential issues, enabling quick troubleshooting and minimizing downtime. This proactive approach to system management significantly contributes to maintaining high productivity levels.

    The direct-connect and rack-optimized communication options provide flexibility in installation and connectivity, ensuring a streamlined setup process. Additionally, the inclusion of field-side diagnostics allows for on-site monitoring and maintenance, reducing the need for frequent technical interventions.
