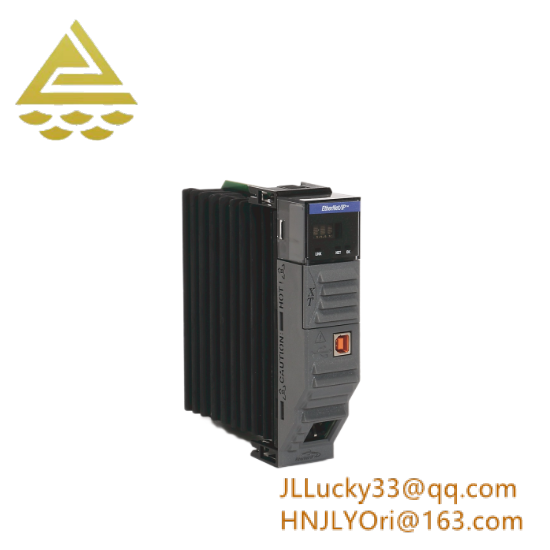

Allen-Bradley 1756-EN2TXT ControlLogix Ethernet/IP Bridge Module

Model Type:Ethernet/IP Bridge Module

Model Number:1756-EN2TXT

Manufacturer:Allen-Bradley

Communication Protocol:EtherNet/IP

Speed:10/100 Mbps

Connection:Shielded or Unshielded Twisted Pair

Temperature Range:0 – 60 °C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Enclosure Type:Open Type

Mounting Type:Chassis

    The Allen-Bradley 1756-EN2TXT ControlLogix Bridge Module is designed for seamless integration into existing industrial automation networks, offering a robust solution for enhanced connectivity and scalability.

    With support for up to 128 TCP/IP connections and 256 CIP connections, this module facilitates efficient communication within complex industrial environments, ensuring reliable data transfer and control over various devices.

    Featuring a RJ45 copper interface, it ensures compatibility with standard Ethernet cables, simplifying installation and maintenance processes.

    The module supports a maximum of 64 TCP/IP connections and 128 Logix connections, making it ideal for applications requiring high-speed data exchange between ControlLogix processors and peripheral devices.

    Equipped with advanced features like socket services and SNMP support, the 1756-EN2TXT ensures optimal network management and monitoring, allowing for proactive troubleshooting and system optimization.
