Number of Channels:2
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS
Input Range:-20 To 20 MA
Output Range:-10 To 10 V – 1 LSB
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Environmental Conditions:Operating Temperature: 0 – 60 DEG C
Relative Humidity:5 – 95% Non-Condensing
Shock Resistance:30 G

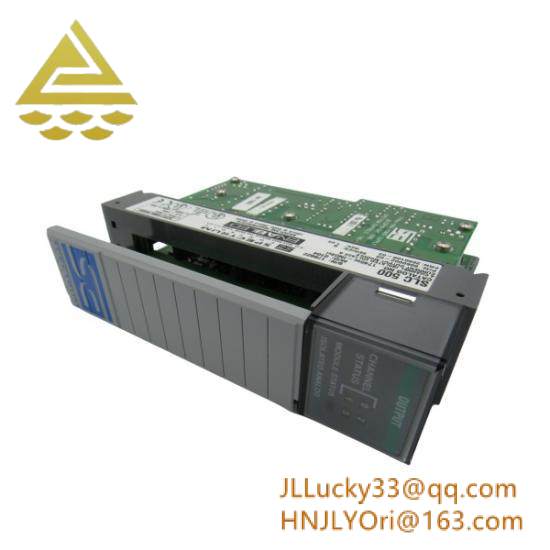

Introducing the Allen Bradley 1746SC-INO4VI Volt Output SLC 500 Input Module, designed to elevate your industrial automation experience with unparalleled precision and reliability. This high-resolution voltage input module boasts dual channel capabilities, ensuring seamless integration into complex control systems.
Crafted for demanding environments, this module offers an extensive common mode voltage range from -20 to 20 volts, accommodating a wide variety of industrial applications. Its robust design ensures accurate readings under varying conditions, enhancing system performance and reliability.
With an absolute input voltage range of plus/minus 7.5 volts DC or RMS 7.5 volts AC maximum, the Allen Bradley 1746SC-INO4VI is capable of handling diverse electrical signals with ease. The input range of -20 to 20 milliamps (MA) ensures compatibility with a broad spectrum of sensors and devices.
Featuring a versatile output range from -10 to 10 volts with a resolution of 1 least significant bit (LSB), this module delivers precise control signals to your automation systems. The full-scale output voltage of 10 volts DC provides a reliable reference point for various applications.
Designed with safety in mind, the Allen Bradley 1746SC-INO4VI includes overvoltage protection of 7.5 volts AC RMS, safeguarding against potential damage caused by unexpected voltage surges. Its input range of -10 to 10 volts DC with 1 LSB resolution ensures accuracy in both AC and DC environments.
Equipped with advanced isolation features, this module ensures secure data transmission through communication circuits rated at 500 volts DC and backplane isolation up to 1500 volts AC. Its open-type enclosure and chassis mounting design facilitate easy installation and maintenance in various industrial settings.
