Model Type:High-Resolution Analog Input/Output Module
Number of Channels:4 Input / 4 Output
Common Mode Voltage Range (Input):-20 to 20 V
Absolute Input Voltage (Input):+/- 7.5 VDC or +/- 7.5 VAC RMS (Max.)
Input Range (Current):-20 to 20 mA
Output Range (Voltage):0 to 20 mA
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Backplane Current Draw:35 MA at 5 V, 85 MA at 24 V
Dimensions:Standard 6U DIN Rail Mount
Operating Temperature:-20°C to 70°C
Operating Humidity:0% to 95% non-condensing

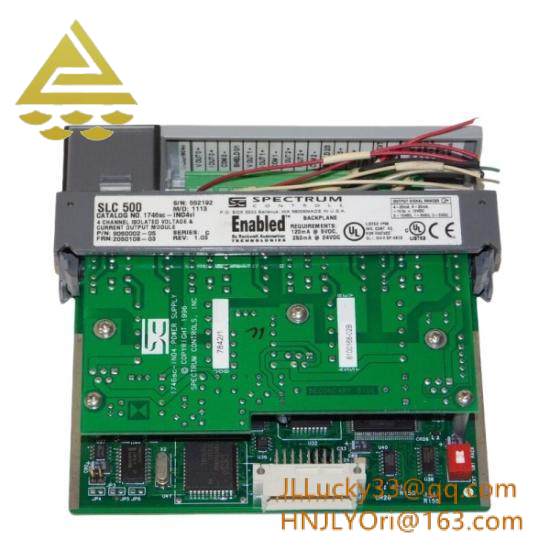

The Allen-Bradley 1746SC-INO4VI is a high-resolution analog combination module tailored for industrial automation, offering precise control and data acquisition.
With its robust design, this module ensures reliable operation under a wide range of environmental conditions, from freezing cold to scorching heat.
It provides four high-precision input channels and four output channels, each capable of handling both voltage and current signals, making it versatile for various industrial applications.
The 1746SC-INO4VI is equipped with overvoltage protection, ensuring safety and longevity in harsh environments, and its open-type enclosure allows for easy installation and maintenance.
This module is compatible with Allen-Bradley’s PLC system, integrating seamlessly into existing industrial control networks, enhancing efficiency and reducing downtime.
