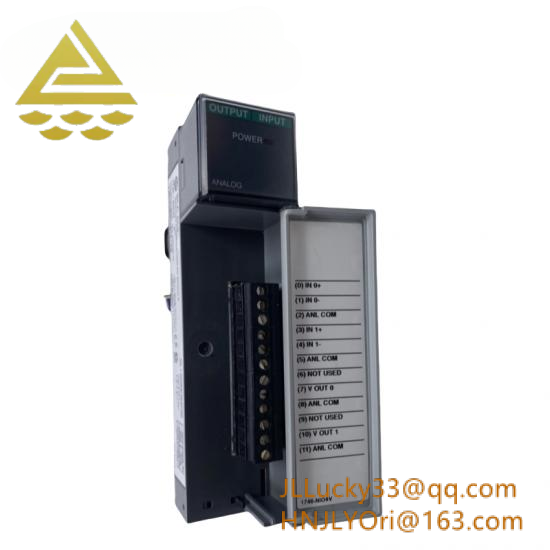

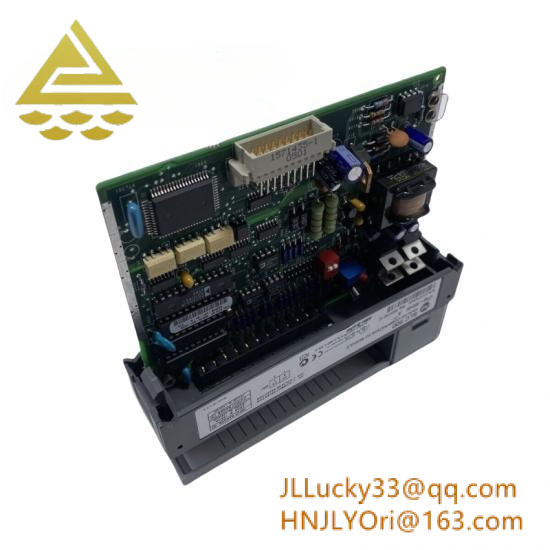

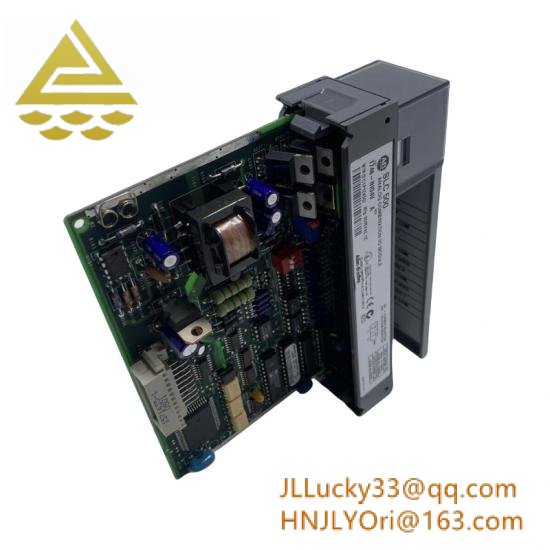

Allen Bradley 1746-NIO4V SLC 500 Analog Input & Output Module

Model Type:High Resolution Analog Combination Module

Number Of Channels:2 Inputs, 2 Outputs

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA

Output Range:-10 To 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Backplane Current Draw:55 MA

Isolation:Backplane: 500 VDC

Enclosure Type:Open Type

    Crafted for precision in industrial automation, the Allen Bradley 1746-NIO4V module seamlessly integrates with your existing control systems, ensuring reliable and accurate signal processing.

    Equipped with dual input channels capable of handling common mode voltage ranges from -20 to 20V, this module ensures robust performance across various operational conditions.

    The module supports a wide current range (-20 to 20MA) on inputs and -10 to 10V output range, allowing for versatile integration into diverse industrial processes.

    Backplane current draw of 55mA optimizes system efficiency, reducing power consumption and enhancing the overall reliability of your automation setup.

    With 500VDC isolation between the backplane and enclosure, the Allen Bradley 1746-NIO4V provides enhanced safety and reliability, safeguarding against electrical interference and ensuring uninterrupted operation.
