Number Of Channels:4 Input / 4 Output
Common Mode Voltage Range (Input):-20 To 20 V
Absolute Input Voltage (Max):+/- 7.5 VDC or 7.5 VAC RMS
Input Range (MA):-20 To 20 MA
Absolute Input Current (Max):-30 To 30 MA
Voltage Rating (Overvoltage Protection):7.5 VAC RMS
Input Range (DC):-10 To 10 VDC – 1 LSB
Current Rating (Backplane):35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Weight:N/A
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% relative humidity non-condensing

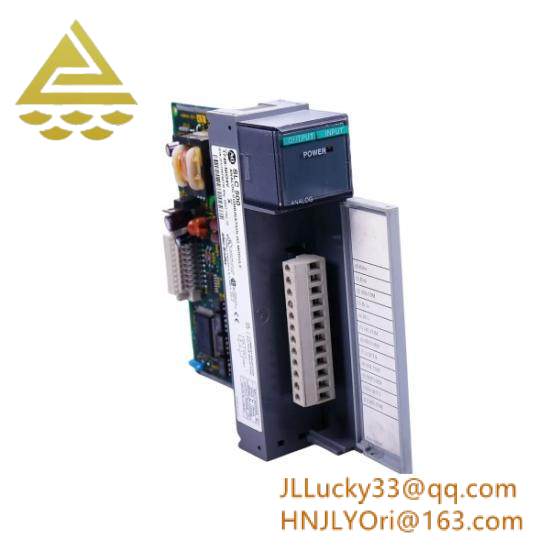

Experience unparalleled precision in industrial control with the 1746-NIO4V Analog Module, engineered specifically for SLC 500 systems. This module offers an advanced design that ensures reliable performance under various environmental conditions.
Featuring four versatile analog inputs and outputs, this module supports both voltage and current measurements, enabling seamless integration into a wide range of industrial automation setups.
With its fast sampling rate of 20 samples per second per channel, the 1746-NIO4V ensures real-time data acquisition, crucial for dynamic process monitoring and control.
Engineered for durability and efficiency, the module consumes a mere 5 watts, making it energy-efficient while maintaining high performance standards. Its temperature range of -40°C to 70°C ensures operation in extreme environments.
For enhanced system flexibility, the 1746-NIO4V is equipped with a DB-25 connector and is compatible with the ControlNet communication protocol, facilitating easy integration and data exchange within the SLC 500 ecosystem.
