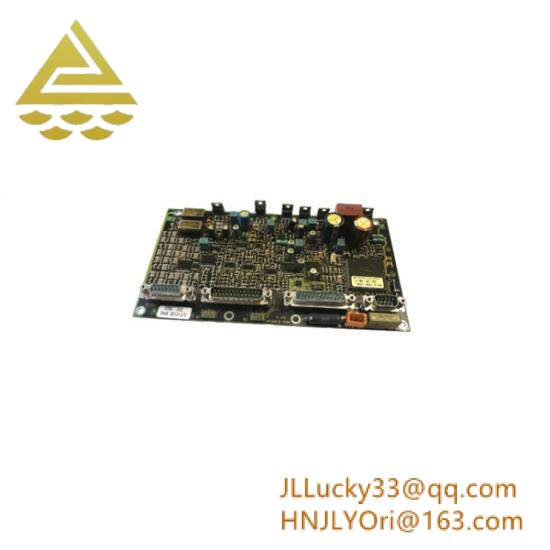

ABB SMB DSQC 313 3HAB2213-1 Measurement Meß Board – High-precision Analog Input Module for Industrial Automation

Brand:ABB

Model:SMB DSQC 313

Sub-model:3HAB2213-1

Module Category:Measurement Board

Input Voltage:8…40V DC

Output Voltage:±10V

Analog Channels:16

Digital Channels:8

Sampling Rate:1 kHz

Resolution:12 bits

Communication Protocol:DeviceNet

Operating Temperature:-20°C…+60°C

Storage Temperature:-40°C…+85°C

    The ABB SMB DSQC 313 3HAB2213-1 Measurement Board is meticulously engineered to deliver unparalleled reliability and efficiency in industrial automation environments. It supports a wide array of applications, from process control to machinery monitoring, ensuring precise data acquisition and real-time response to operational needs.

    Featuring a robust and compact design, this module is compatible with a variety of PLCs and other automation components, enabling easy integration into existing systems. Its advanced signal processing capabilities enhance system performance, contributing to increased productivity and reduced downtime.

    Equipped with a DeviceNet communication interface, the DSQC 313 facilitates seamless data exchange with other networked devices, optimizing communication efficiency in distributed control systems. This feature ensures smooth operation and enhanced interoperability across different subsystems.

    The board’s ability to handle up to 16 digital inputs and outputs allows for versatile use in various control scenarios, supporting diverse automation requirements. Whether for monitoring sensor data or controlling actuators, this module ensures reliable and efficient operation.

    Designed for durability and longevity, the ABB SMB DSQC 313 3HAB2213-1 Measurement Board operates within a temperature range of -20°C to +55°C, ensuring stable performance even in harsh industrial environments. Its compact size and modular design make it an ideal choice for space-constrained applications.
