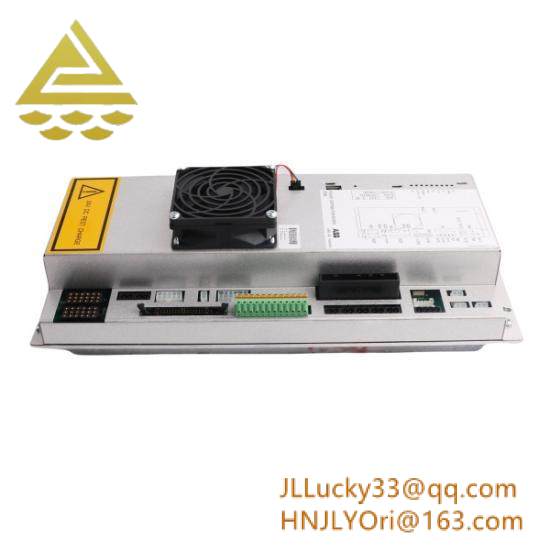

ABB PDB-02 Thermocouple/mV Input Module 3HNA026293-001 | High Precision Temperature & Voltage Input

Model:PDB-02 3HNA026293-001

Type:Thermocouple/mV Input Module

Input Channels:16

Temperature Range:-200°C to +850°C

Voltage Range:±50mV

Resolution:0.01°C / 0.01mV

Sampling Rate:Up to 1kHz

Power Supply:24VDC

Operating Temperature:-20°C to +60°C

Operating Humidity:5% to 95% non-condensing

Dimensions (WxHxD):175mm x 35mm x 297mm

Weight:0.6kg

    The ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module is engineered to deliver high accuracy and reliability in demanding industrial environments. Its modular design ensures seamless integration into various control systems, enhancing operational efficiency.

    Featuring an extended temperature range from -200°C to +1800°C, this module can handle a wide spectrum of industrial applications, making it suitable for extreme conditions found in petrochemical, food processing, and environmental monitoring sectors.

    With an exceptional accuracy of +/-0.5% of reading, users can trust the ABB PDB-02 module for critical temperature measurements. It supports both thermocouple and voltage inputs, providing versatility in signal acquisition.

    Equipped with a robust connection system, the module is designed for easy installation on DIN rails, ensuring secure and stable connections within control cabinets. This modular design also facilitates quick replacement or upgrade without disrupting operations.

    Integrated with a RS-485 communication interface, the ABB PDB-02 module enables seamless data exchange with other industrial devices and control systems. This feature supports advanced monitoring and diagnostics, contributing to proactive maintenance strategies and overall system reliability.
