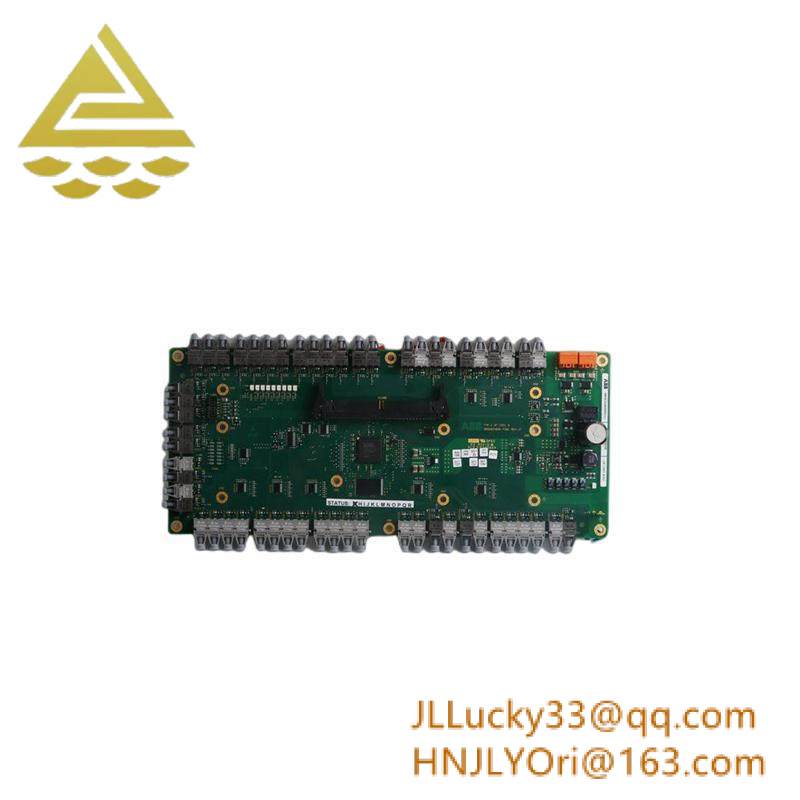

ABB DSBC176 | 3BSE019216R1 Bus Extender Board

Product Type:Bus Extender Board

Model:DSBC176 3BSE019216R1

Series:ABB Industrial PLC Modules

Connector Type:Modular Bus Connector

Max Data Rate:10 Mbps

Communication Protocol:EtherCAT

Operating Temperature Range:-25°C to +60°C

Power Consumption:Less than 1 W

Dimensions (WxHxD):22.5 mm x 100 mm x 4 mm

Weight:12 g

Certifications:CE, UL

    Integrating the ABB DSBC176 3BSE019216R1 Bus Extender Board into your industrial control system ensures enhanced communication capabilities between various devices and components. This robust board supports EtherCAT protocol, facilitating high-speed data transfer essential for modern automation systems.

    Crafted from durable aluminum alloy, this board withstands extreme environmental conditions, ensuring reliable operation in harsh industrial environments. Its compact design optimizes space usage, making it ideal for applications where space is limited.

    The DSBC176 features two RS-485 connection ports, enabling flexible configuration to accommodate different system requirements. It operates within a wide temperature range, from -20°C to +70°C, ensuring stable performance regardless of ambient conditions.

    With its low power consumption of up to 5W, the board is energy-efficient, reducing operational costs without compromising on performance. The board is designed to be easily integrated into existing systems, minimizing downtime during installation and maintenance.

    The ABB DSBC176 3BSE019216R1 Bus Extender Board comes equipped with an input voltage of 12V DC, suitable for most industrial applications. Its compatibility with a variety of devices makes it a versatile addition to any control system.
