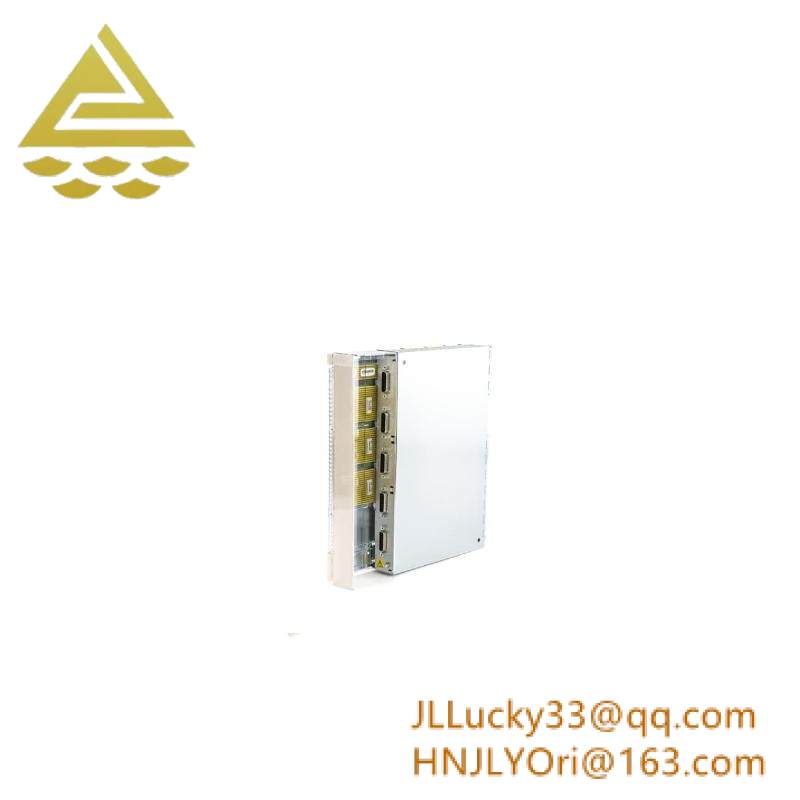

ABB DP620 3BHT300016R1: High Precision Digital Counter Module

Operating Voltage:220 V

Output Frequency:30 kHz

Number of Channels:8

Counter Range:Up to 2^31 counts

Resolution:0.1 µs

Accuracy:±0.01%

Dimensions:175.26 mm x 35.56 mm x 297.18 mm

Weight:0.6 kg

    The ABB DP620 3BHT300016R1 High Speed Counter Module is engineered for high-precision applications requiring fast response times and extensive counting capabilities.

    Featuring an operating voltage of 24 V DC and input currents up to 50 mA, this module ensures accurate measurement even under varying operational conditions.

    With a remarkable counting range of up to 65,535 pulses per channel, it meets the stringent requirements of diverse industrial settings, from manufacturing lines to complex process control systems.

    Its ultra-fast response time of less than 2 milliseconds enables seamless integration into high-speed data acquisition systems, ensuring real-time monitoring and control.

    Adaptable to a wide range of temperatures, from -20°C to +70°C during operation and from -40°C to +85°C for storage, this module ensures reliable performance across various environments.

    Equipped with a Profinet communication interface, it seamlessly integrates into the ABB Allen-Bradley control system, enhancing connectivity and efficiency in industrial automation processes.
