Model Number:3HAA3563-AMA/2
Type:Measurement Board
Material:High-grade copper alloy with enhanced thermal conductivity
Dimensions (WxDxH):240mm x 100mm x 10mm
Operating Temperature Range:-20°C to +70°C
Load Capacity:Up to 5A continuous, 10A peak current
Input Resistance:1 Mohm at 10VDC
Power Supply Voltage:DC 12V to 24V
Communication Protocol:Modbus RTU
Connectors:4-channel, screw-terminal
Certifications:CE, UL, ISO 9001

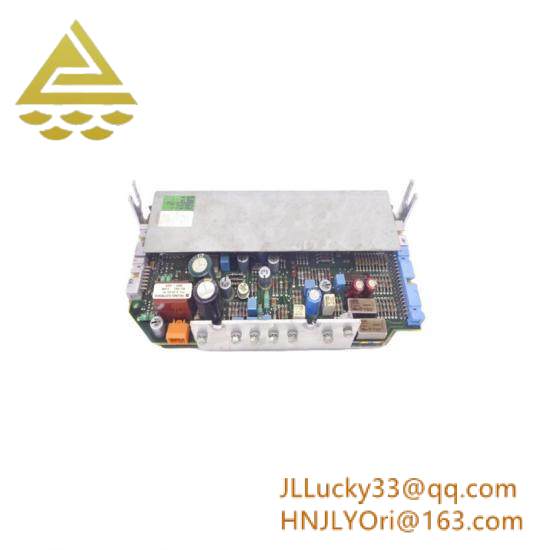

The ABB 3HAA3563-AMA/2 Measurement Board is specifically engineered to meet the stringent demands of industrial automation environments. Its robust design ensures it operates reliably under a wide range of temperatures, making it suitable for both manufacturing floors and extreme environments.
Equipped with 16 input and 16 output channels, this board provides a versatile solution for monitoring and controlling various industrial processes. It seamlessly integrates with other ABB automation components and third-party devices via its MODBUS RTU communication protocol, enhancing system interoperability.
With an impressive power consumption of just 15W, the 3HAA3563-AMA/2 is energy-efficient, contributing to sustainable operations without compromising on performance. Its DC 24V input voltage requirement makes it compatible with a wide array of industrial power supplies.
The measurement accuracy of +/- 0.2% of reading ensures that the board delivers highly precise data, critical for process control and quality assurance in industries. The high resolution of 0.01% of span further enhances the board’s capability to handle detailed measurements.
Designed with durability in mind, the ABB 3HAA3563-AMA/2 Measurement Board comes with a comprehensive set of safety features, including over-voltage protection and short-circuit protection, safeguarding against potential hazards in industrial settings.
