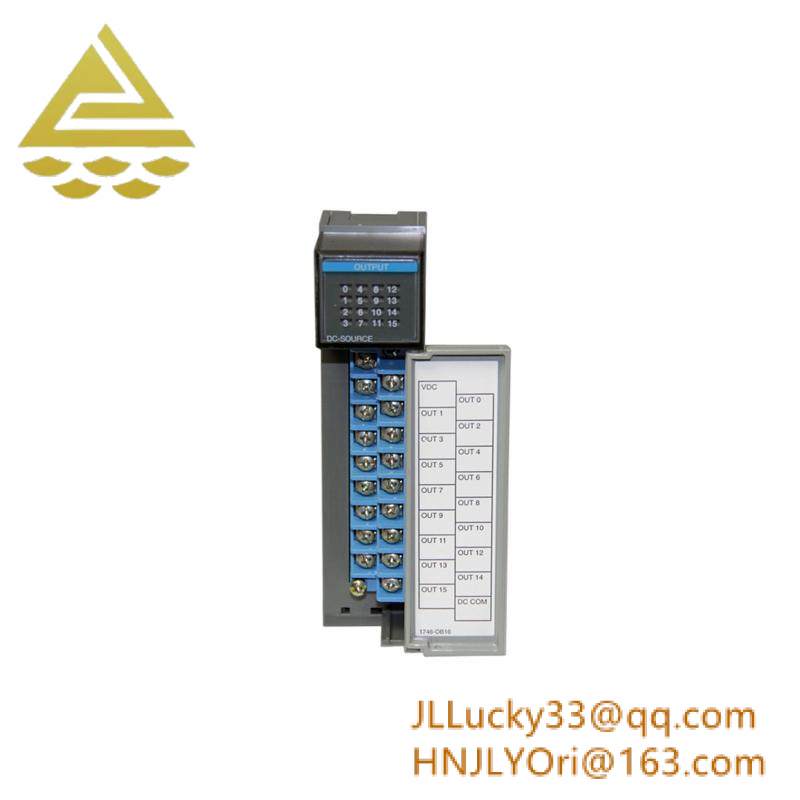

Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen-Bradley
Digital DC Output Module:Yes
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:20.4-26.4VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating (Backplane):0.28 A
Continuous Current per Output:0.25 A at 60°C
Continuous Current per Module:4 A at 60°C
Isolation (Communication Circuits):500 VDC
Isolation (Backplane):1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% relative humidity
The AB 1746-OB16 is a robust and versatile module designed for seamless integration into industrial control systems. It delivers precise digital control with a high output capacity, making it suitable for demanding applications across various industries.
Equipped with advanced isolation features, this module ensures reliable performance even in challenging environmental conditions. Its open-type enclosure facilitates easy access for maintenance and customization, enhancing its usability in diverse settings.
Featuring a continuous current rating of 0.25 A per output at 60°C, the AB 1746-OB16 is capable of handling a wide range of loads efficiently. Its 16-channel design allows for flexible configuration, accommodating multiple control requirements within a single module.
With an input voltage of 24 VDC and a precise on-state voltage drop of 1.2 V, the AB 1746-OB16 ensures minimal power loss during operation. This results in enhanced efficiency and reduced maintenance costs over the long term.
Certified for use in industrial environments, this module meets stringent safety and quality standards, ensuring compliance with international regulations. It supports seamless integration with Allen-Bradley’s SLC 500 processor, offering enhanced system performance and reliability.
