Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen Bradley
Module Type:Digital DC Output Module
Number Of Channels:16
Input:24 VDC
Output:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:Backplane: 0.28 A, Continuous Current Per Output: 0.25 A At 60 DEG C, Continuous Current Per Module: 4 A At 60 DEG C
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95%

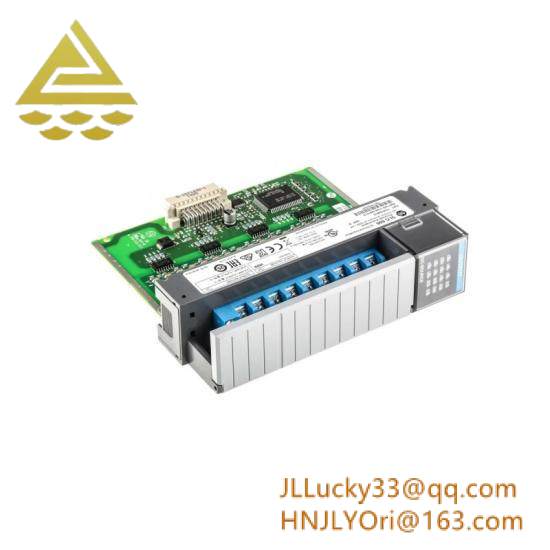

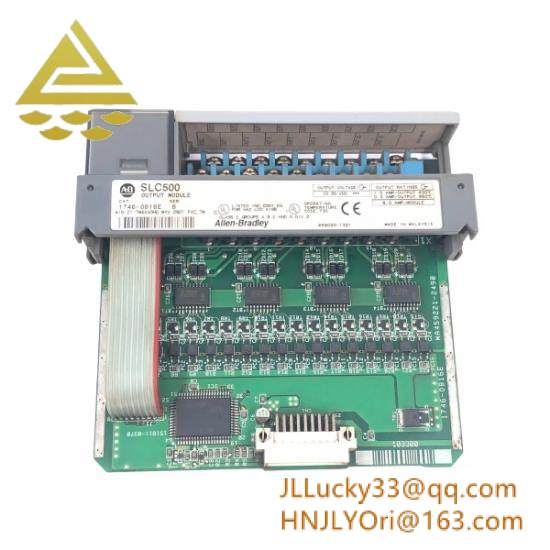

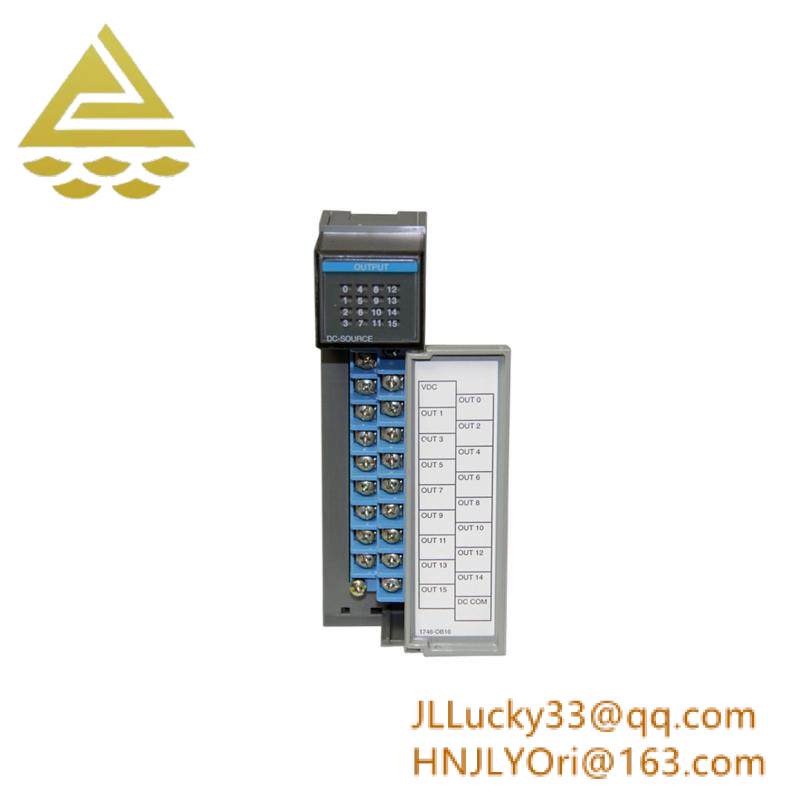

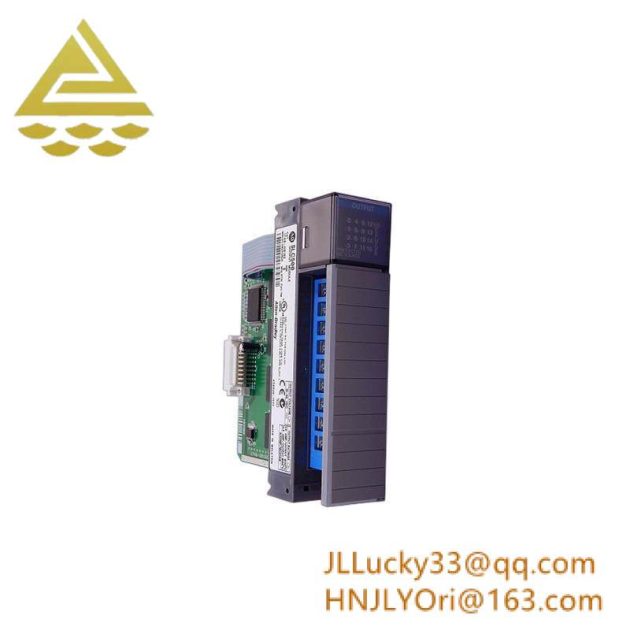

The AB 1746-OB16 Digital DC Output Module is an essential component for industrial control systems. With its robust design and reliable performance, it ensures precise and consistent output in various applications. This module features 16 digital channels, allowing for efficient control and monitoring of industrial processes. It operates on a 24 VDC input and provides a flexible output range from 10 to 50 VDC, making it suitable for a wide array of industrial setups. The low on-state voltage drop and minimal off-state leakage current contribute to its high efficiency and accuracy. The module is built with an open type enclosure, designed for chassis mounting, providing easy installation and maintenance. Its temperature rating ranges from 0 to 60 degrees Celsius, making it ideal for a variety of environmental conditions. The AB 1746-OB16 is certified for communication circuits isolation up to 500 VDC and backplane isolation up to 1500 VAC, ensuring safe and reliable operation in demanding environments.
